Desciption

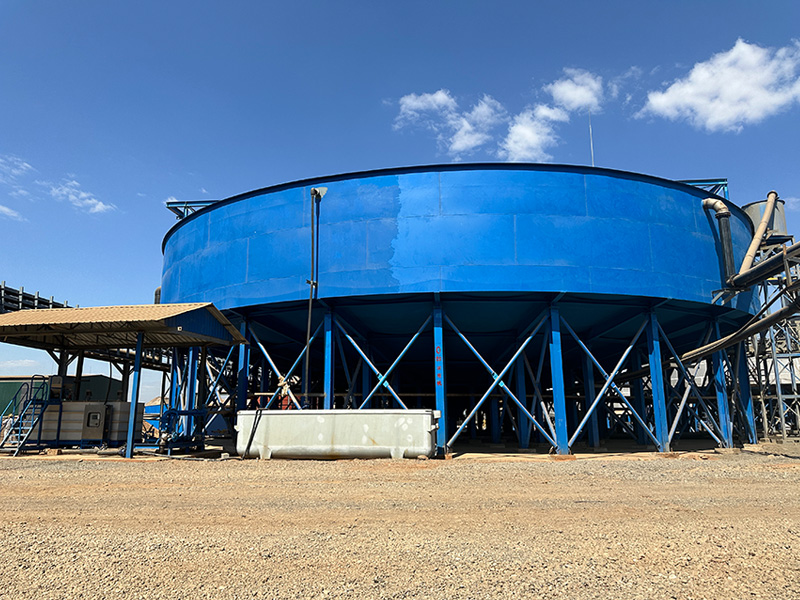

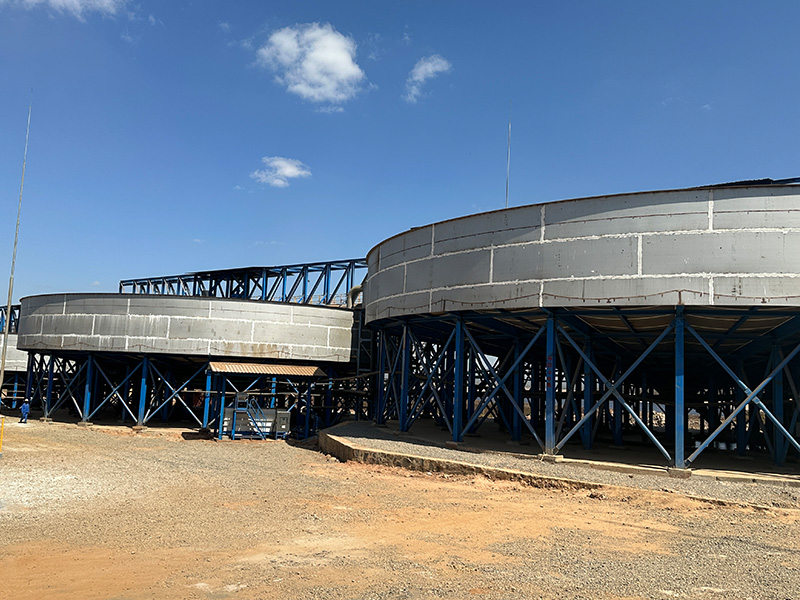

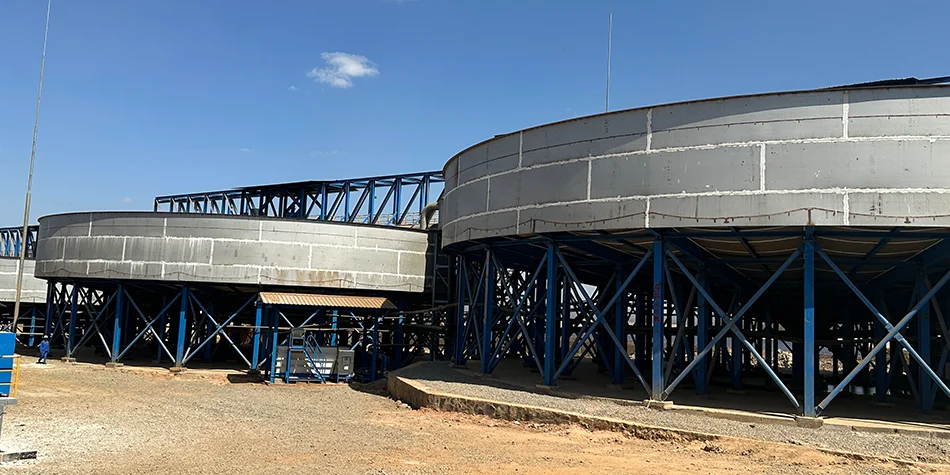

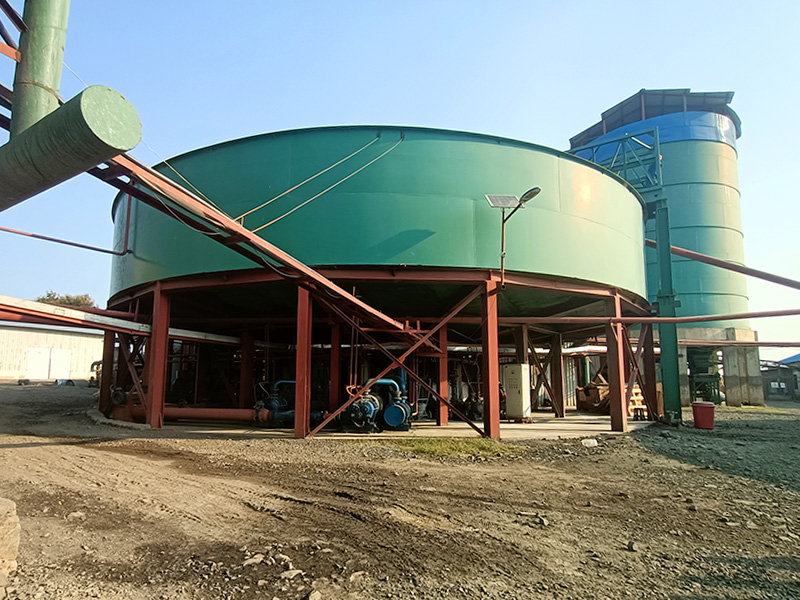

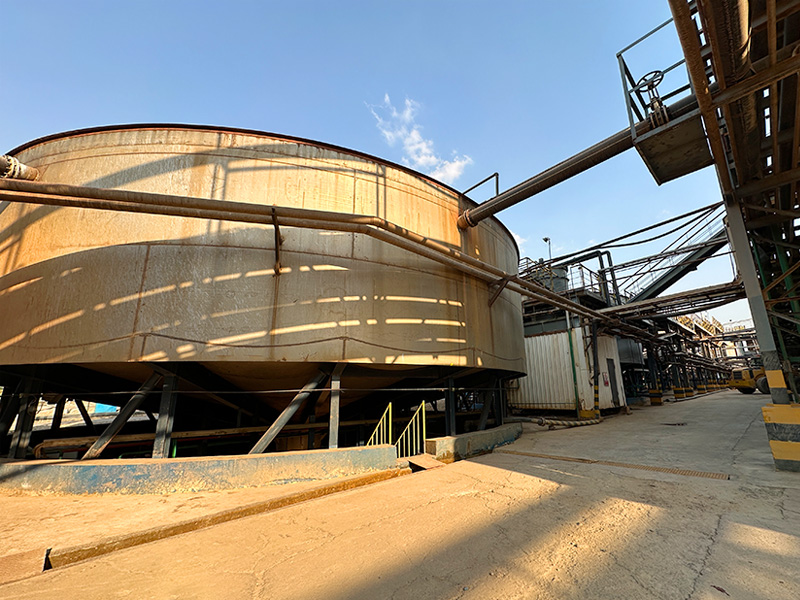

The thickerner is mainly composed of a circular thickening tank and a rake scraper. The solid particles suspended in the slurry in the thickening tank got settled by gravity, and the upper part becomes clarified water,so the liquid and solid is separated. The sludge deposited at the bottom of the concentration tank is continuously scraped and collected to thecenter discharge port at the bottom of the tank for discharge, while the clarified water overflowsfrom the upperedgeof the tank.
Features
- Simple and convenient installation & maintenance.
- The simple internal structure is convenient for the layout of hydraulic and electric control system.
- Control the speed of rake by regulating oil volume of oil pump, to achieve the best state.
- Automatic rake lifting and dropping.
Parameter
| Model | Thickener Tank (m) |
Sedimentation Area (㎡) |
Rake Revolution Time (min) |
Rake Lift Height (m) |
Capacity (t·d) |
Power Of Main Motor (kw) |
Weight (t) |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| Diameter | Depth | A | B | Transmission | Lifting | |||||
| NZS-1 | 1.8 | 1.8 | 2.54 | – | 2 | 0.16 | 5.6 | 1.1 | – | 1.235 |
| NZS-3 | 3.6 | 1.8 | 10.2 | 2.5 | 0.35 | 22.4 | 1.1 | 3.194 | ||
| NZS-6 | 6 | 3 | 28.3 | 3.7 | 0.2 | 62 | 1.1 | 8.751 | ||
| NZS-9 | 9 | 3 | 63.6 | 4.34 | 0.35 | 140 | 3 | 5.1 | ||
| NZF-9 | 9 | 3 | 63.6 | 4.34 | 0.25 | 140 | 3 | 0.8 | 5.36 | |
| NZS-12 | 12 | 3.5 | 113 | 5.28 | 0.25 | 250 | 3 | – | 8.51 | |
| NZ-15 | 15 | 4.4 | 176 | 10.4 | 0.4 | 350 | 5.2 | 2.2 | 21.757 | |
| NZ-20 | 20 | 4.4 | 314 | 10.4 | 0.4 | 960 | 5.2 | 2.2 | 24.504 | |
