Desciption

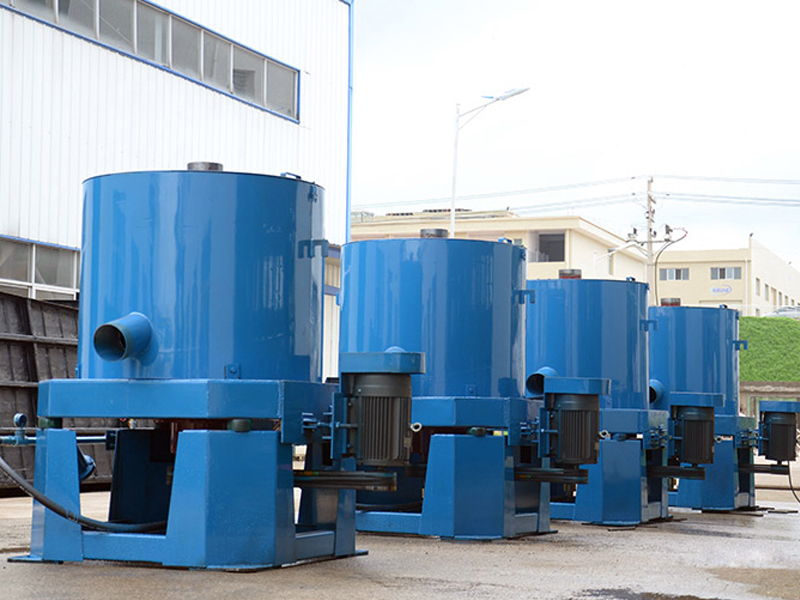

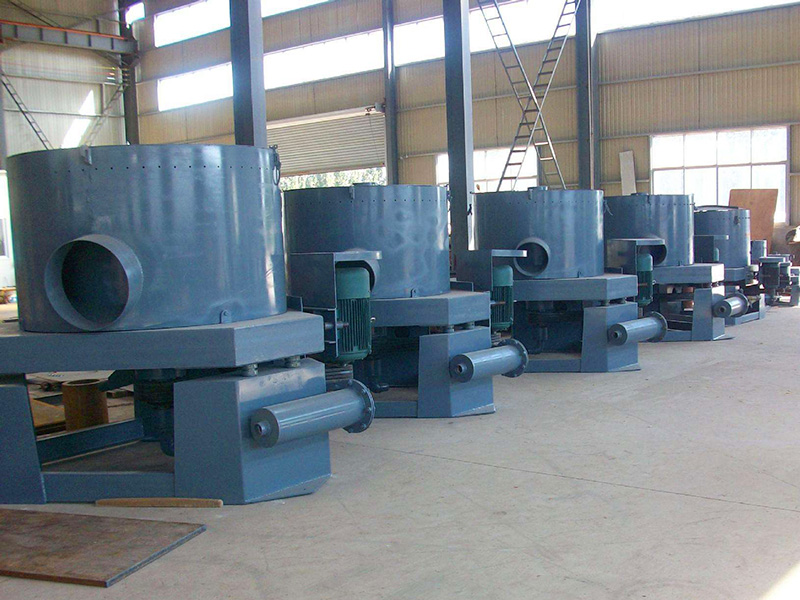

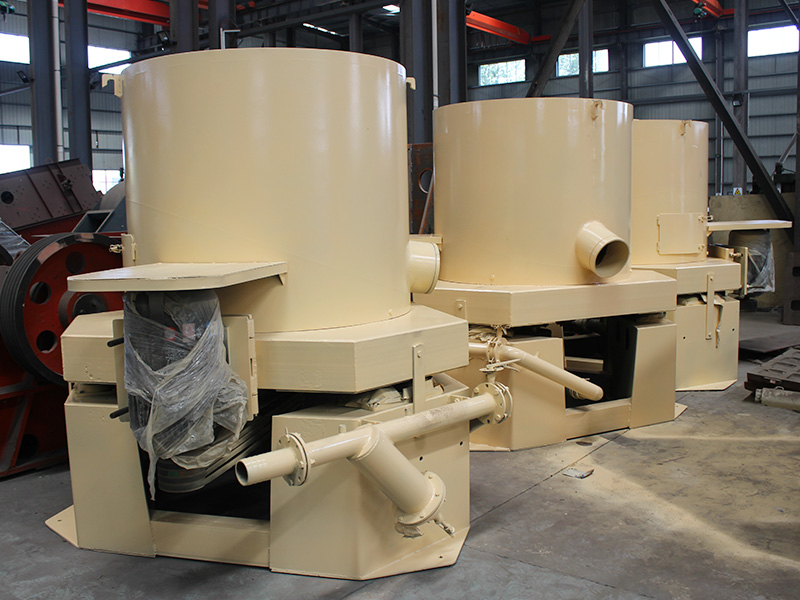

Centrifugal Concentrator is an equipment for gravity separation and creates large centrifugal force through high-speed rotating, which strengthen gravity separation process. The micro fineness minerals can be recovered more effectively.
Features
- Large centrifugal force, lower limitation of recovery fineness
- Large capacity and high concentrating rate
- Reducing the investment of operation, and reducing the consumption of water and electricity
- High degree of automation and easy to operate
Parameter
| Model | STL30 | STL60 | STL80 | STL100 | STL120 |
|---|---|---|---|---|---|
| Capacity(t/h) | 2-3 | 10-15 | 35-40 | 80-120 | 100-130 |
| Feeding Granularity(mm) | 0-4 | 0-6 | 0-6 | 0-6 | 0-6 |
| Feeding Concentration(%) | 0-50% | 0-50% | 0-50% | 0-50% | 0-50% |
| Backwash Volume(t/h) | 4-6 | 10-15 | 17-25 | 40-60 | 70-80 |
| Concentrate Output(kg/t) | 10-20 | 30-40 | 60-70 | 70-80 | 100-120 |
| Motor Power(kw) | 1.5 | 7.5 | 15 | 18.5 | 22 |
| Cone Speed(r/min) | 600 | 460 | 400 | 360 | 360 |
| Pressure Water(mpa) | 0.12 | 0.25 | 0.35 | 0.4 | 0.5 |
| Dimensions(mm) | 1180×1140×1250 | 1970×1670×1750 | 2300×1800×2200 | 2500×2000×2400 | 2700×2200×2600 |
| Machine Weight(kg) | 400 | 1300 | 2000 | 2500 | 3000 |
