Desciption

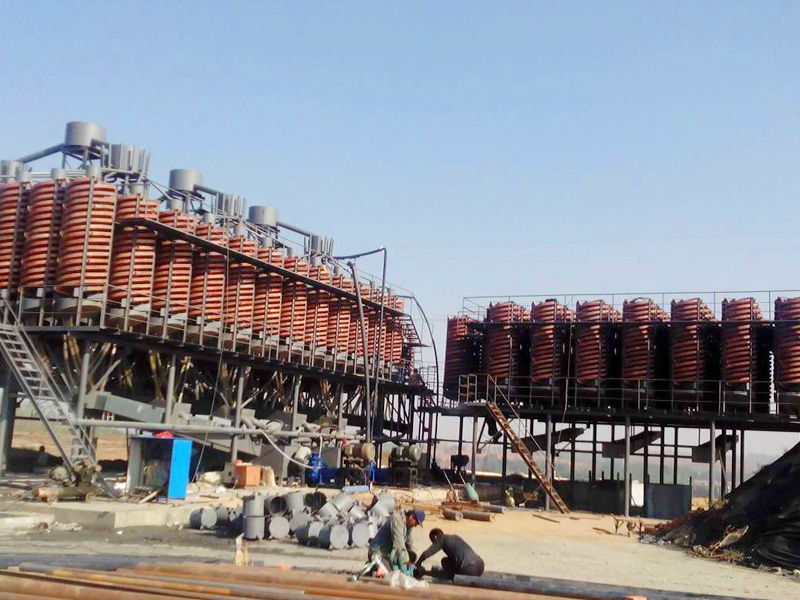

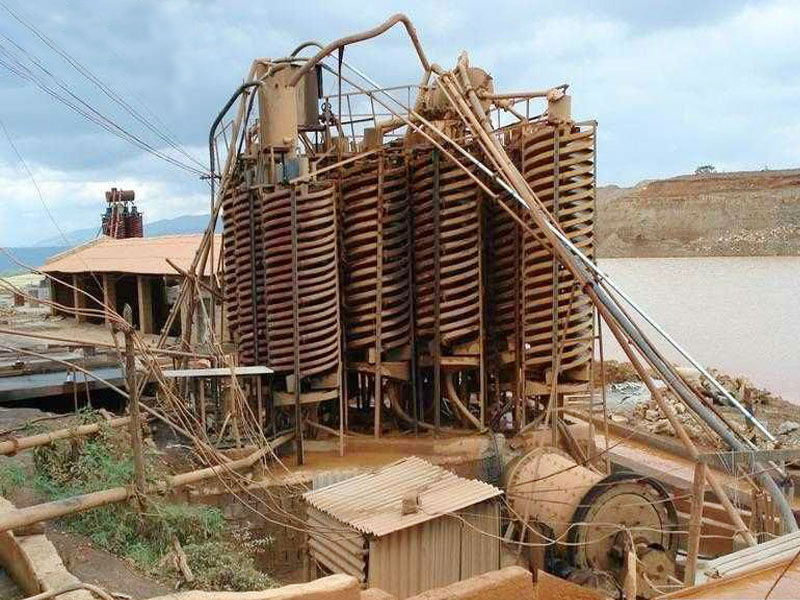

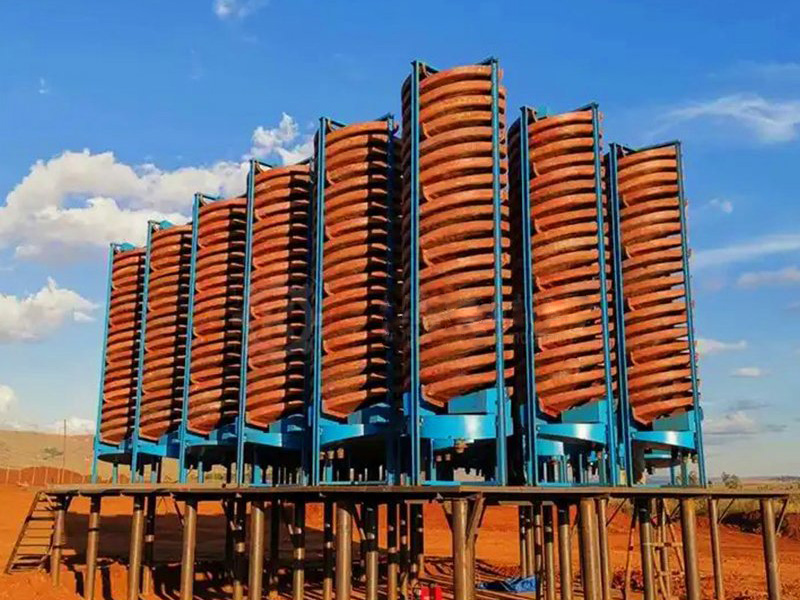

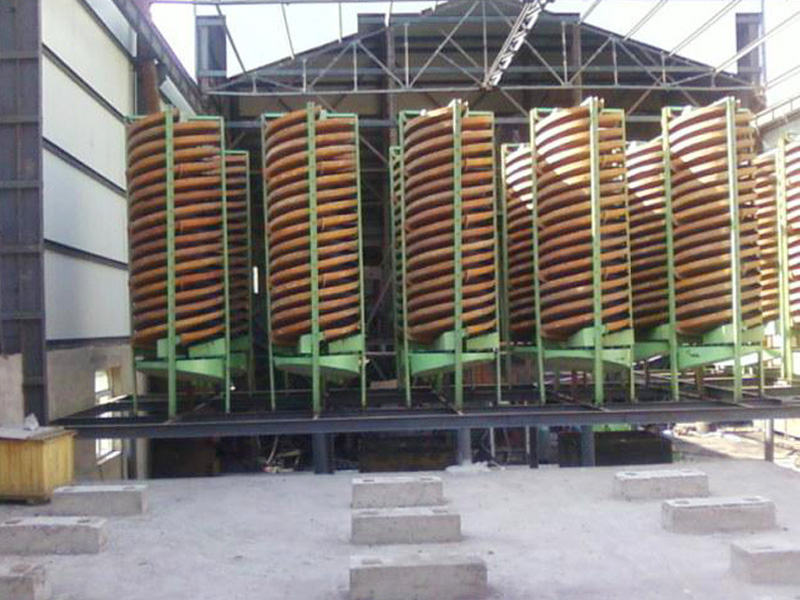

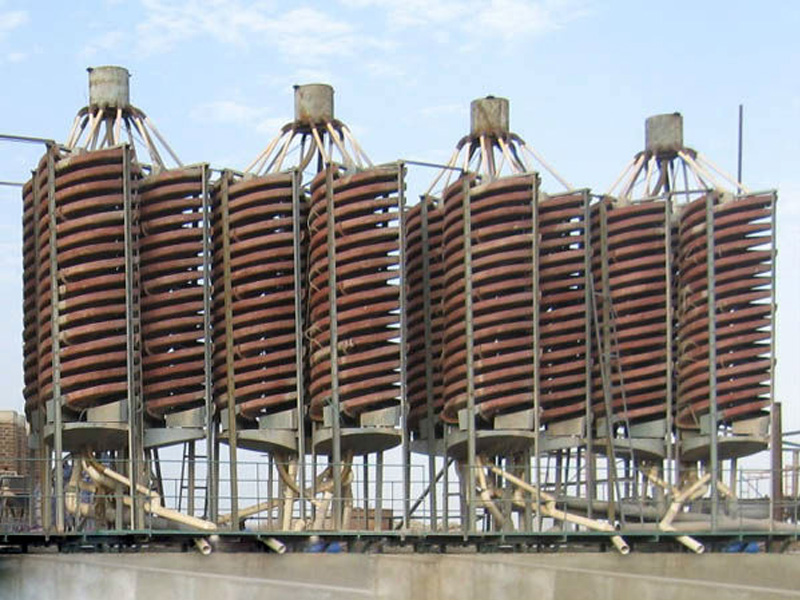

Spiral chute is suitable for treatment of 0.3-0.02mm lode and placer, which is gravity concentrators and separate minerals of different specific gravity according to their relative movement in response to gravity, centrifugal force, and other forces in the fluid medium. Spiral separators are made of polyurethane lined fiber glass with wearable corundum inner surface.
Features
- Stable, easy control, wide range of concentration
- Large capacity, enrichment ratio, high recovery rate
- Small cover space, less water consumption, simple structure, no need of power
- Simple installation, convenient operation, less investment, quick return
Parameter
| Model | Outer Diameter (mm) |
Inner Diameter (mm) |
Pitch (mm) |
Dia. Span Ratio |
Tilt Angle (°) |
Head Number |
Number Of Turns |
Feeding Size (mm) |
Feeding Coneentration (%) |
Capacity (t/h) |
Area (㎡) |
Height (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DI2000 | 2000 | 2000 | 1200 | 0.6 | 9 | 2-4 | 3.5 | 0.04-0.4 | 20-40 | 15-45 | 7 | 6.8 |
| DI1500 | 1500 | 1500 | 900 | 0.6 | 9 | 2-4 | 4 | 0.03-0.3 | 20-45 | 10-25 | 5 | 6.1 |
| DI1200 | 1200 | 1200 | 720/540 | 0.6 | 9 | 2-4 | 4-5 | 0.03-0.3 | 30-50 | 4-6 | 2 | 5.23 |
| LI900 | 900 | 900 | 540/360 | 0.4 | 9 | 2-3 | 4-5 | 0.03-0.3 | 30-50 | 2-3 | 1.2 | 4 |
| LI600 | 600 | 600 | 390/360 | 0.4 | 9 | 1-2 | 4-5 | 0.02-0.2 | 30-50 | 0.8-1.2 | 0.5 | 2.6 |
| LI400 | 400 | 400 | 180 | 0.45 | 9 | 1-2 | 4-5 | 0.02-0.2 | 30-50 | 0.5-0.2 | 0.25 | 1.3 |
