Desciption

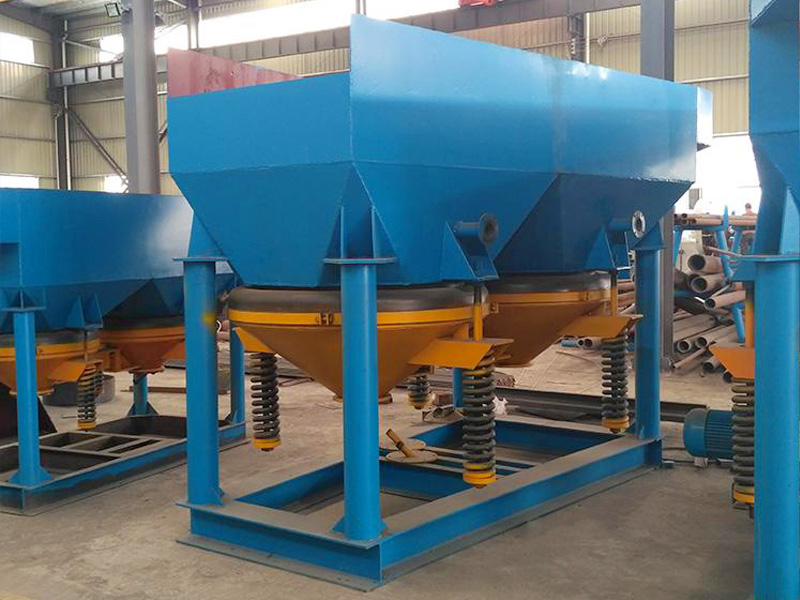

The jig belongs to gravity-based equipment, which can separate mineral based on differing of specific gravity. Saw-tooth wave jig mainly consists of three parts: main frame, driving set and jigging chamber.
Features
- Stroke and jig frequency are easy to adjust; the advanced frequency conversion speed control technology is convenient to operate and manage
- Saving water 30-40% than ordinary jig of jig plant
- Small cover area, high processing capacity per unit area
- High concentration ratio and high recovery of jig plan
Parameter
| Model | Stroke Coefficient | Stroke
(mm) |
Frequency
(Times/min) |
Feeding Size
(mm) |
Processing Capacity
(t/h) |
Water Consumption
(t/h) |
Power
(kw) |
|---|---|---|---|---|---|---|---|
| LTA55/2 | 0.5 | 0-25 | 250-350 | 8 | 1-5 | 4-20 | 1.5 |
| LTA1010/2 | 0.5 | 0-25 | 250-350 | 8 | 5-15 | 20-60 | 3 |
| LTA1515/2 | 0.5 | 0-50 | 200-300 | 10 | 30-50 | 100-140 | 5.5 |
| LTA2020/2 | 0.5 | 0-50 | 200-300 | 10 | 40-60 | 160-200 | 7.5 |
| FRT16-2 | 0.9 | 0-90 | 0-200 | 0-50 | 40-60 | 200 | 18.5 |
| Model | Sectional
Form |
Number Of
Columns |
Number Of
Jigging Rooms |
Jig Area
(㎡) |
Stroke
Coefficient |
Stroke
(mm) |
Frequency
(Times/min) |
Processing
Capacity (t/h) |
Power
(kw) |
|---|---|---|---|---|---|---|---|---|---|
| AM-30 | rectangle | double – row | 4 | 2.574 | 0.47 | 0-50 | 130-160 | 10-15 | 3 |
