Desciption

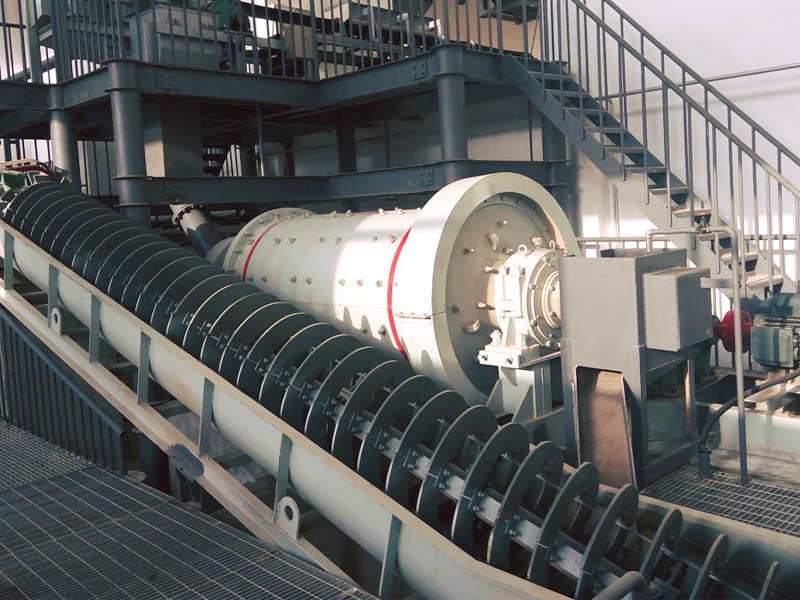

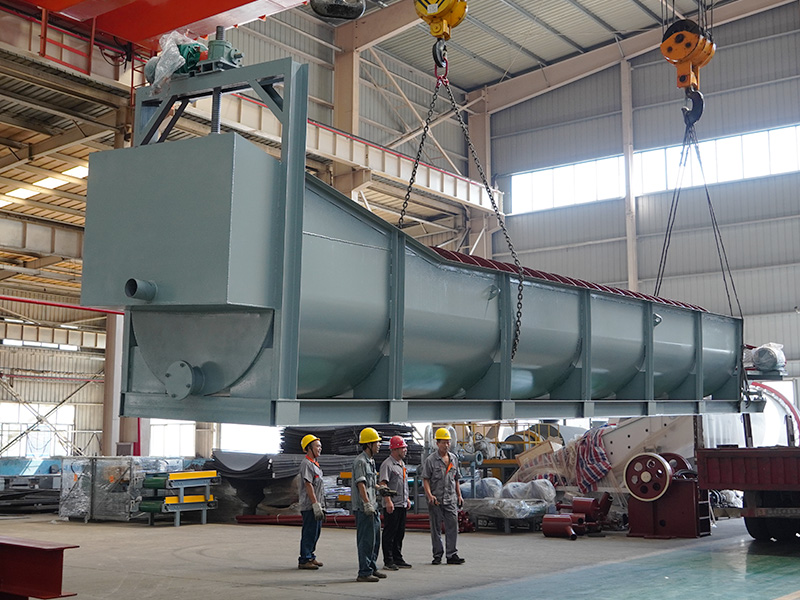

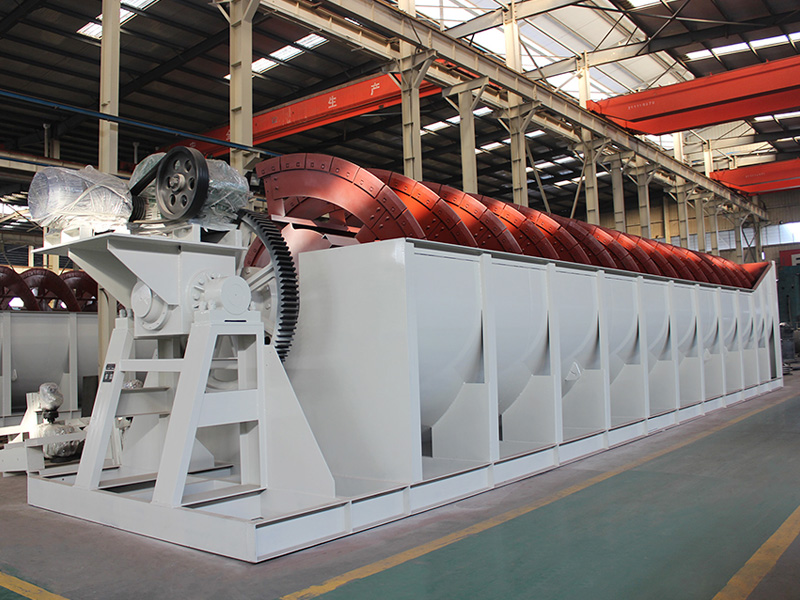

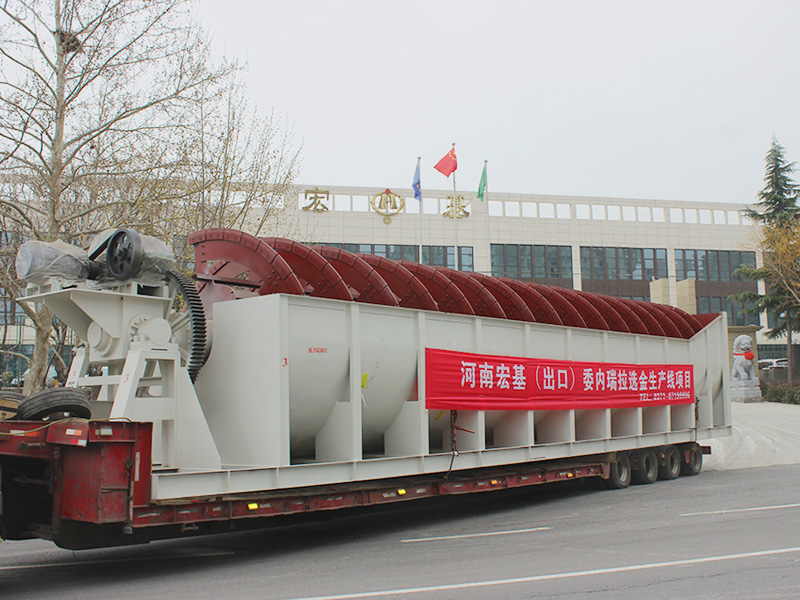

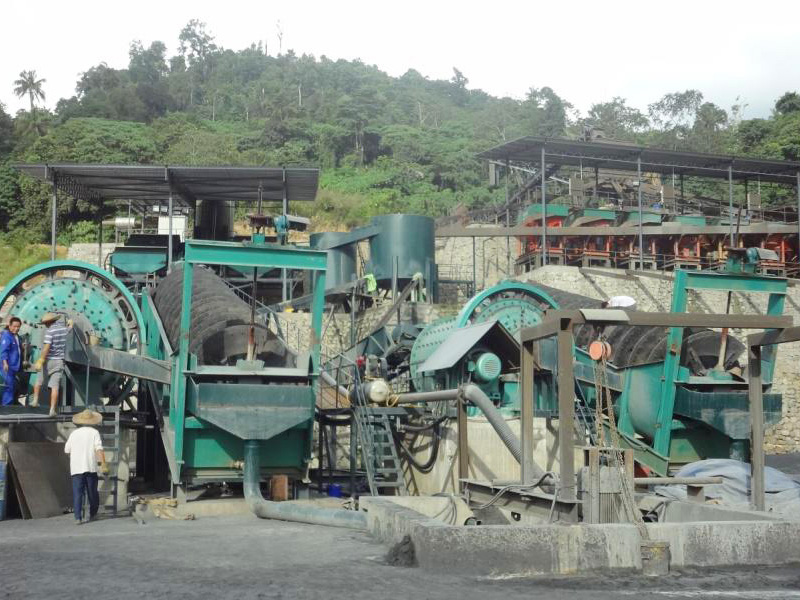

Spiral classifiers can grade different particles in ore slurry during the metal beneficiation process as well as deslime and dehydrate in the washing operation. They are widely used to separate ore sands by forming a closed-circuit with the ball mill in concentrators, or in gravity concentrators to classify ores and fine muds.
Features
- 1.Low power consumption.
- 2.Continuous spiral raking.
- 3.Wide choice of weir height.
- 4.Rigid tank and substructure.
- 5.High classifier production.
Parameter
| Type | Model | Screw Speed (r/min) |
Capacity (t/d) |
Dia.Of Screw (mm) |
Helix Length (mm) |
Gradient (°) |
Driving Motor |
Elevating Motor |
Weight (kg) |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Retum Sand |
Over Flow |
Model | Power (kw) |
Model | Power (kw) |
|||||||
| High Weir Type Single Screw |
FLG-500 | 8 | 145-260 | 32 | Φ500 | 4390 | 14-18 | Y100L1-4 | 2.2 | Manual | – | 1600 |
| FLG-750 | 7.8 | 256-654 | 65 | Φ750 | 5500 | Y112M-6 | 3 | 2716 | ||||
| FLG-1000 | 6.7 | 473-1026 | 85 | Φ1000 | 6556 | Y132S-6 | 5.5 | 4000 | ||||
| FLG-1200 | 5/6/7 | 1145-1600 | 150 | Φ1200 | 6500 | Y132M2-6 | 5.5 | Y90L-4 | 1.5 | 7943 | ||
| FLG-1500 | 2.5/4/6 | 1140-2740 | 235 | Φ1500 | 8265 | Y132M2-6 | 7.5 | Y100L1-4 | 2.2 | 11827 | ||
| FLG-2000 | 3.6/5.5 | 3890-5940 | 400 | Φ2000 | 8700 | Y160M-6 | 11/15 | Y100L2-4 | 3 | 20814 | ||
| FLG-2400 | 3.6 | 6800 | 580 | Φ2400 | 9130 | Y160L-6/4 | 22 | Y112M-4 | 4 | 24194 | ||
| FLG-3000 | 3.2 | 11625 | 890 | Φ3000 | 12500 | Y200L2-6 | 30 | Y112M-4 | 4 | 42188 | ||
| High Weir Type Double Screw |
2FLG-1200 | 5/6/7 | 2340-3200 | 310 | Φ1200 | 6500 | Y200L-4 | 5.5×2 | Y90L1-4 | 1.5×2 | 15840 | |
| 2FLG-1500 | 2.5/4/6 | 2280-5480 | 470 | Φ1500 | 8230 | Y132M2-6 | 7.5×2 | Y100L1-4 | 2.2×2 | 22903 | ||
| 2FLG-2000 | 3.6/5.5 | 7780-11880 | 800 | Φ2000 | 8400 | Y160M-6 | 15×2 | Y100L2-4 | 3.0×2 | 34621 | ||
| 2FLG-2400 | 3.63 | 13600 | 1160 | Φ2400 | 9130 | Y160L-4 | 22×2 | Y112M-4 | 4.0×2 | 42460 | ||
| 2FLG-3000 | 3.2 | 23300 | 1785 | Φ3000 | 12500 | Y200L2-6 | 30×2 | Y112M-4 | 4.0×2 | 73030 | ||
| Submerged Single Screw |
FLC-1000 | 2.5-7.4 | 160-700 | 50-260 | Φ1000 | 8397 | Y200L-4 | 5.5 | Manual | – | 5225 | |
| FLC-1200 | 5-7 | 1150-1640 | 120 | Φ1200 | 8400 | Y132M2-6 | 7.5 | Y90L-4 | 1.5 | 9583 | ||
| FLC-1500 | 2.5-6 | 1140-2740 | 185 | Φ1500 | 10500 | Y160M-6 | 7.5 | Y100L1-4 | 2.2 | 14226 | ||
| FLC-2000 | 3.6-5.5 | 3240-5940 | 320 | Φ2000 | 18000 | Y160M-6 | 15 | Y100L2-4 | 3 | 27753 | ||
| FLC-2400 | 3.6 | 6800 | 455 | Φ2400 | 14130 | Y160L-4 | 18.5 | Y112M-4 | 4 | 32467 | ||
| FLC-3000 | 3.2 | 11650 | 705 | Φ3000 | 14300 | Y200L1-6 | 30 | Y112M-4 | 4 | 43500 | ||
| Submerged Double Screw |
2FLC-1200 | 3.8-6 | 1770-2800 | 240 | Φ1200 | 8040 | Y200L-4 | 7.5×2 | Y100L1-4 | 2.2×2 | 19610 | |
| 2FLC-1500 | 2.5-6 | 2280-5480 | 370 | Φ1500 | 10500 | Y160M-6 | 7.5×2 | Y100L1-4 | 2.2×2 | 27450 | ||
| 2FLC-2000 | 3.6/5.5 | 7780-11880 | 640 | Φ2000 | 12900 | Y200L2-6 | 22/30 | Y100L2-4 | 3.0×2 | 50621 | ||
| 2FLC-2400 | 3.67 | 13700 | 910 | Φ2400 | 14130 | Y25S-4 | 37 | Y112M-4 | 4.0×2 | 65283 | ||
| 2FLC-3000 | 3.2 | 23300 | 1410 | Φ3000 | 14300 | Y225M-4 | 45 | Y112M-4 | 4.0×2 | 84900 | ||
