Desciption

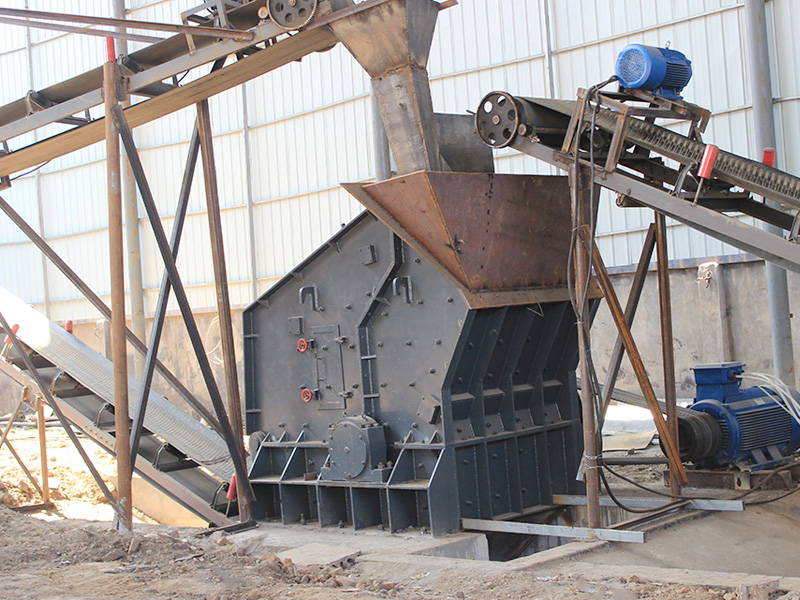

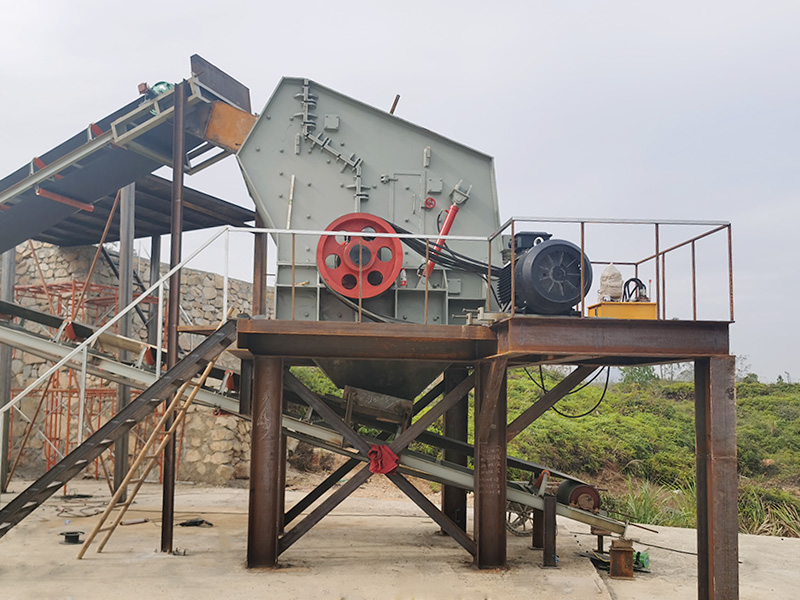

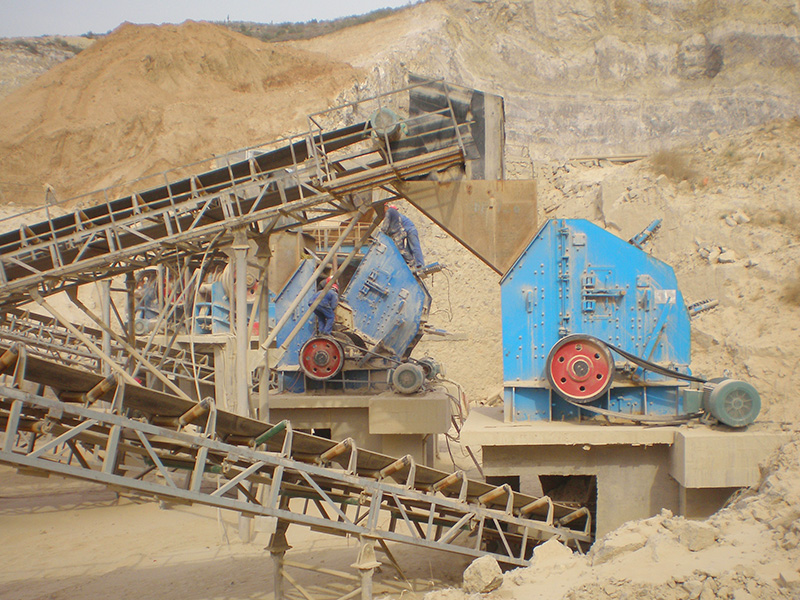

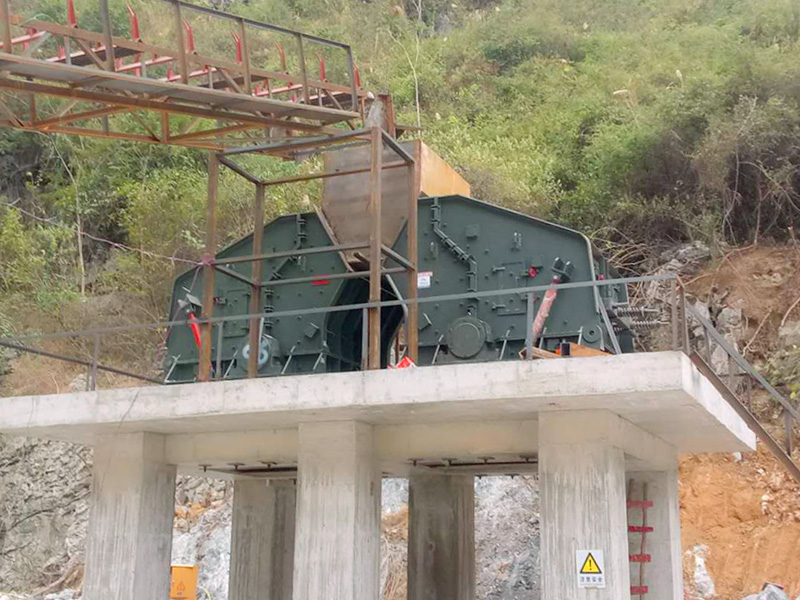

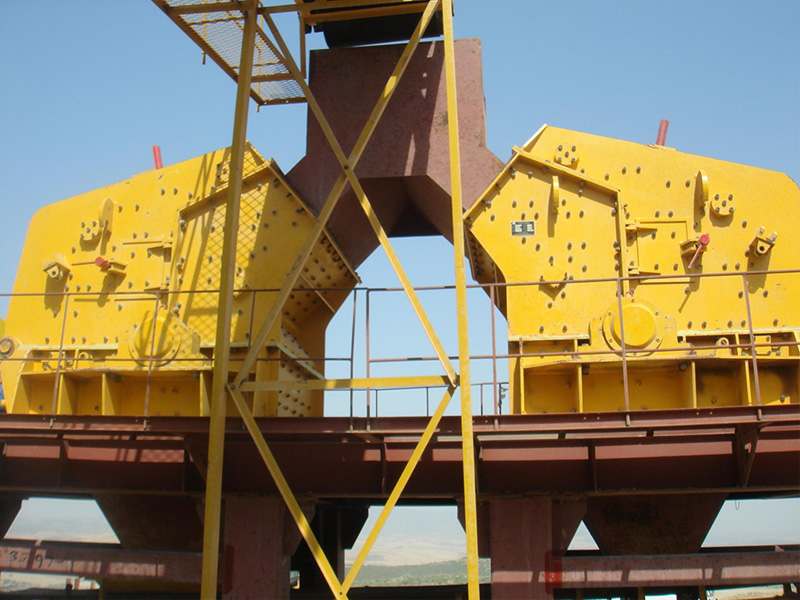

This series impact crusher is able to crush coarse, medium and fine materials such as granite, limestone and concrete whose feeding granularity does not exceed 500mm and compression strength does not exceed 350MPa in many industries such as ore crushing, railway, highway, energy, cement, chemistry and constriction. The size of the discharging granularity is adjustable, and the crushing specifications are diverse.
Features
1. It has big feeding mouth, high crushing chamber, high adaptability of the material hardness and small amount of stone powders
2.
The gap between the impacting plate and the plate hammer is convenient
to adjust so that it can effectively control the discharging granularity
and the particle shape is good.
3. It has compact structure and strong rigidness, and the rotor has big rotational inertia.
4. It adopts high chromium plate so that it has shock resistance, abrasion resistance and big impacting force.
5. It adopts no key links so that it is convenient in maintenance and repair and economical and reliable.
6. It has comprehensive crushing functions, high production ratio, small abrasion and high comprehensive benefits.
Parameter
| Model | Rotor Size (mm) |
Feed Opening (mm) |
Max Feed Size (mm) |
Production Capacity (t/h) |
Power (kw) |
Weight (t) |
Overall Dimension (mm) |
|---|---|---|---|---|---|---|---|
| PF-1007 | Φ1000x700 | 400x730 | 300 | 30-70 | 4P 37-45 | 12 | 2330x1660x2300 |
| PF-1010 | Φ1000x1050 | 400x1080 | 350 | 50-90 | 4P 45-55 | 15 | 2370x1700x2390 |
| PF-1210 | Φ1250x1050 | 400x1080 | 350 | 70-130 | 6P 110 | 17.7 | 2680x2160x2800 |
| PF-1214 | Φ1250x1400 | 400x1430 | 350 | 100-180 | 6P 132 | 22.4 | 2650x2460x2800 |
| PF-1315 | Φ1320x1500 | 860x1520 | 500 | 180-280 | 6P 200 | 27 | 3180x2720x3120 |
| PF-1320 | Φ1300x2000 | 993x2000 | 500 | 280-380 | 6P 250 | 34 | 3220x3100x3120 |
| PF-1520 | Φ1500x2000 | 830x2040 | 700 | 380-550 | 4P 315-400 | 50.6 | 3959x3564x3330 |
