Desciption

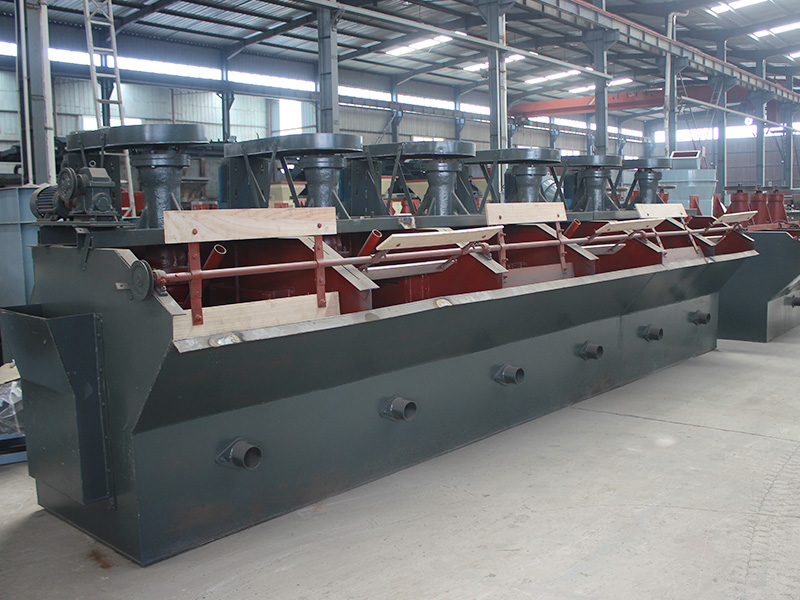

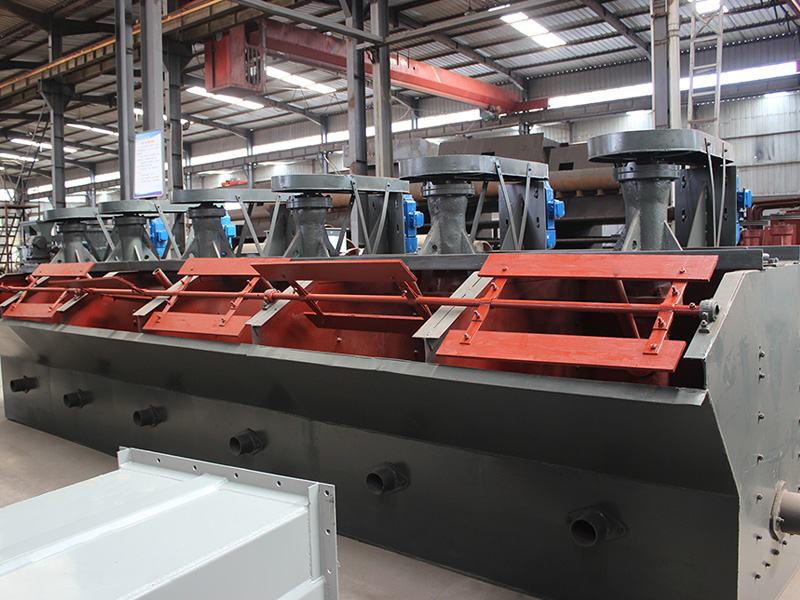

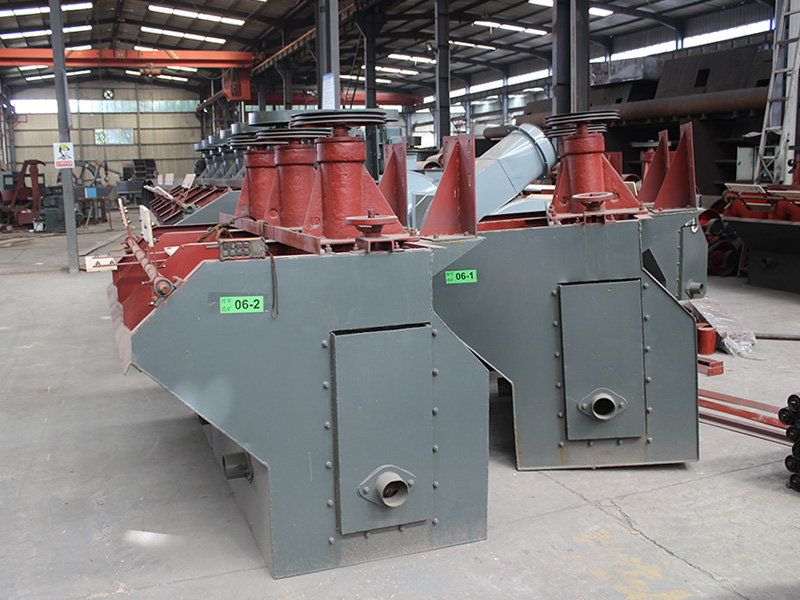

GF flotation machine is a relatively coarse particle flotation machine, which is suitable for medium and small enterprises that select non-ferrous, black, precious metals and non-metallic minerals. Applicable material size is0.074mm of 45-98%, with pulp density <45%.
Features
- 1.Slurry cell circulation is good, stable surface, no turn of flowers.
- 2.Low power consumption, compared with the same specification similar flotation machine power savings at 15% -20%, self-slurry suction and self-air suction.
- 3.Less damages to impeller and stator, long life to use.
Parameter
| Model | Volume (m) |
Cell Size (mm) |
Motor Power (kw) |
Capacity (m³/min) |
Air Volume (m³/㎡.min) |
Scraper Motor Power (kw) |
Single Cell Weight (kg) |
|---|---|---|---|---|---|---|---|
| GF-0.35 | 0.35 | 700×700×730 | 1.5 | 0.1-0.2 | 1.2 | 0.75 | 470 |
| GF-0.7 | 0.7 | 900×900×900 | 3 | 0.1-0.4 | 1.2 | 1.1 | 932 |
| GF-1.1 | 1.1 | 1100×1100×1000 | 5 | 0.2-0.5 | 1.2 | 1.1 | 1370 |
| GF-2 | 2 | 1400×1400×1150 | 7.5 | 0.3-1.0 | 1.2 | 1.5 | 1750 |
| GF-3 | 3 | 1500×1850×1200 | 11 | 0.5-1.5 | 1.2 | 1.5 | 2230 |
| GF-4 | 4 | 1600×2150×1250 | 15 | 0.5-2.0 | 1.2 | 1.5 | 2585 |
| GF-6 | 6 | 2000×2500×1300 | 22 | 1.0-3.0 | 1.2 | 1.5 | 3300 |
| GF-8 | 8 | 2200×2900×1400 | 30 | 1.0-4.0 | 1.2 | 1.5 | 4130 |
| GF-10 | 10 | 2200×2900×1700 | 30 | 2.0-6.0 | 1.2 | 1.5 | 4500 |
| GF-16 | 16 | 2850×3800×1700 | 45 | 3.0-8.0 | 1.2 | 2.2 | 8320 |
| GF-20 | 20 | 2850×3800×2000 | 45 | 4.0-10.0 | 1.2 | 2.2 | 8670 |
| GF-24 | 24 | 3150×4150×2000 | 55 | 5.0-12.0 | 1.2 | 2.2 | 8970 |
| GF-28 | 28 | 3150×4150×2300 | 55 | 5.0-14.0 | 1.2 | 2.2 | 9480 |
| GF-42 | 42 | 3600×4800×2650 | 75 | 8.0-20.0 | 1.2 | 3 | 19400 |
