Desciption

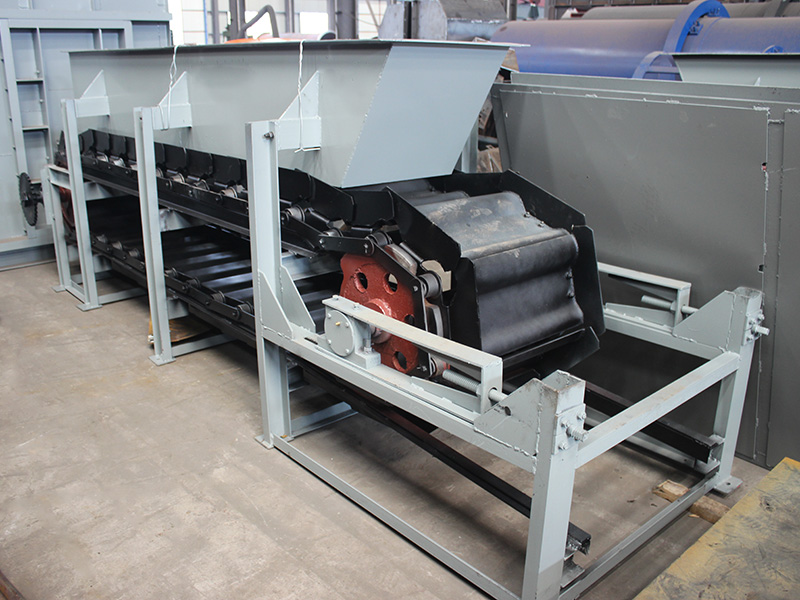

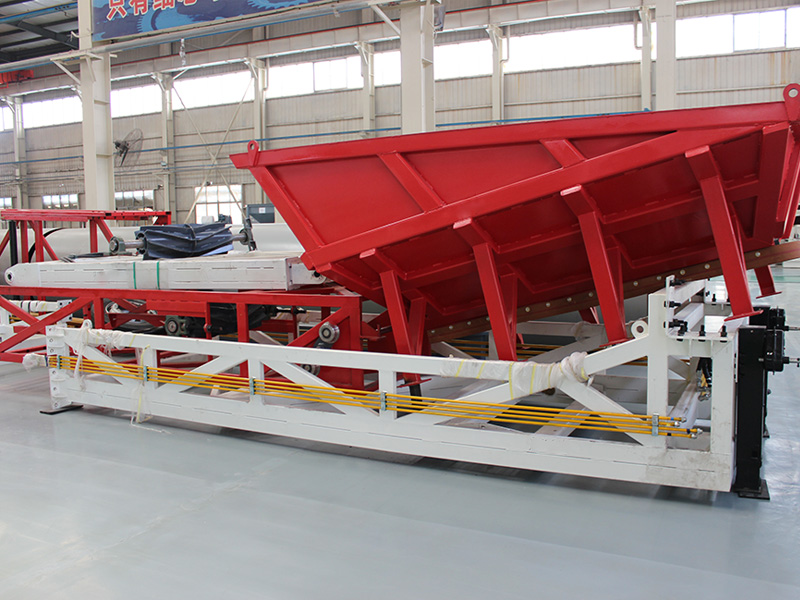

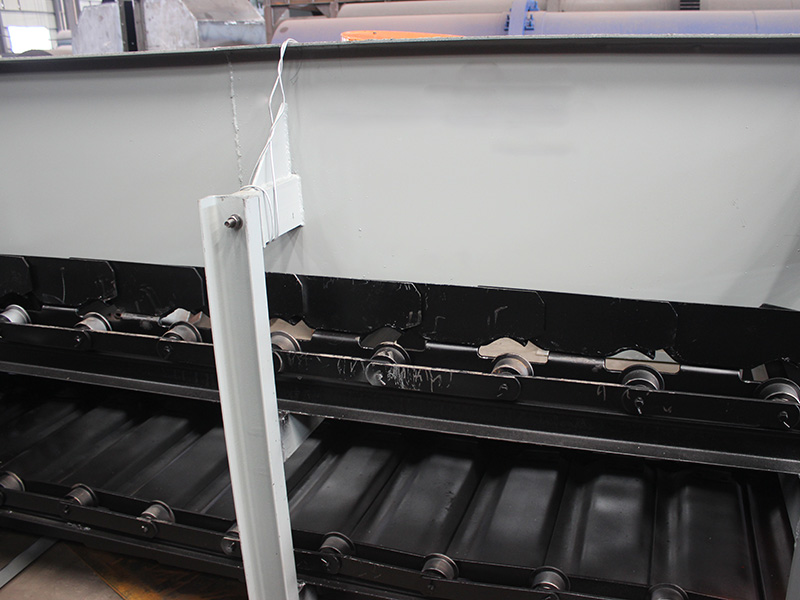

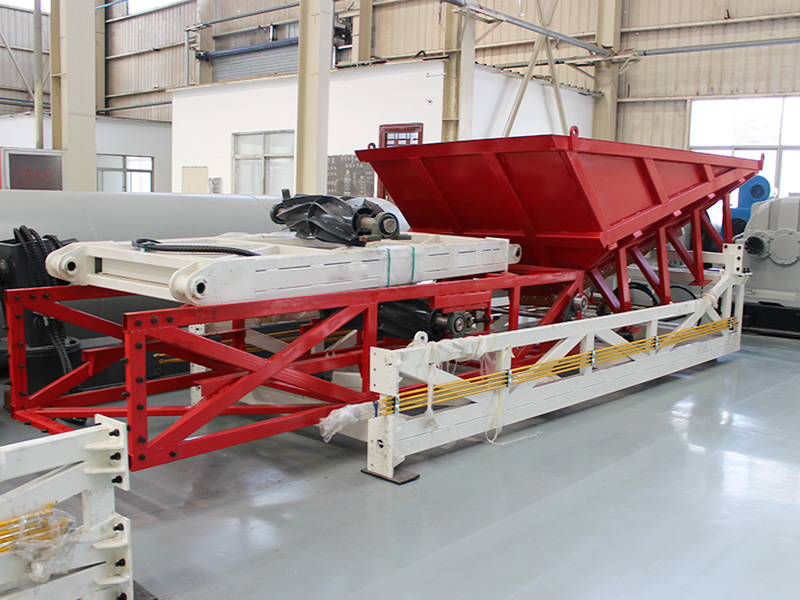

This apron feeder is used to feed primary crusher continuously and uniformly in crushing/classifying workshop of large-scale beneficiation plant, or cement or building material sectors. It can be also used to convey materials with bigger particle sizes and specific gravities in a short distance.
Features
1.Compact structure, reliable quality.
2. Wide application, high efficiency.
3. It can be installed both horizontally and slantly with the maximum slope angle of 12 degree.
4. The max feed size can reach 1000 mm.
Parameter
| Model | Inlet size (LxW)(mm) |
Outlet size (LxW)(mm) |
Eccentric stroke (mm) |
Swinging frequency (n/min) |
Max feed size (mm) |
Feeding capacity (t/h) |
Motor Model |
Motor Power (kw) |
Motor speed (r/min) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| BG300x300 | 300×300 | 300x(30-125) | 0-90 | 46 | 30 | 6.5 | Y802-4 | 0.75 | 1390 | 272 |
| BG400x400 | 400×400 | 400x(50-130) | 0-170 | 45.5 | 35 | 12 | Y90S-4 | 1.1 | 1410 | 558 |
| BG600x600 | 600×600 | 600x(50-150) | 0-157 | 48 | 50 | 40-80 | Y100L-4 | 1.5 | 940 | 613 |
