Desciption

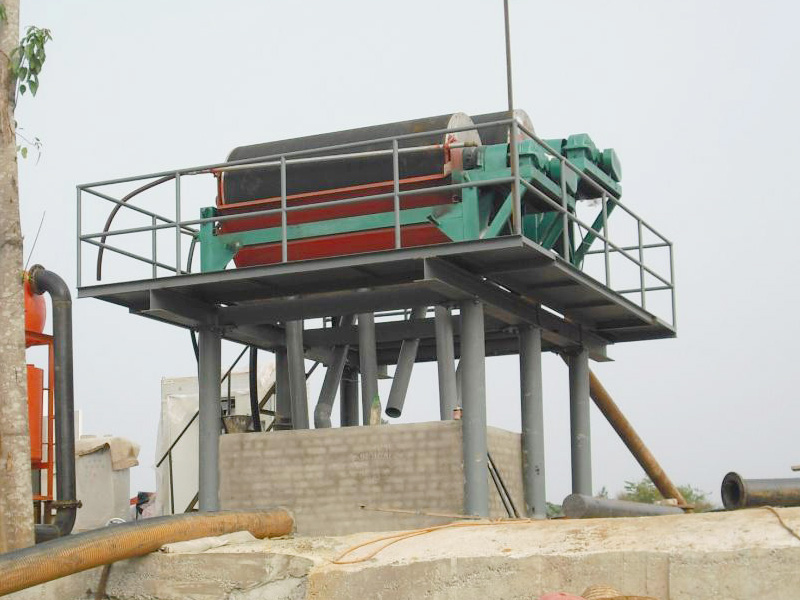

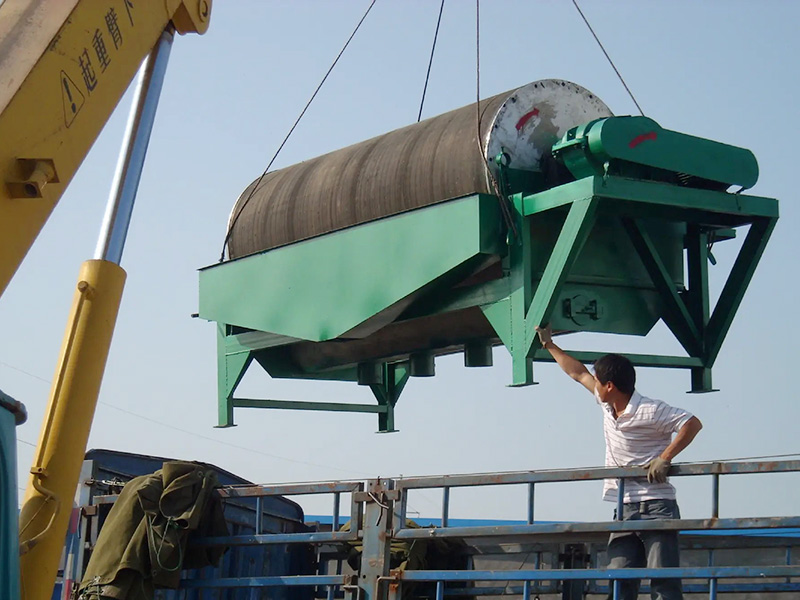

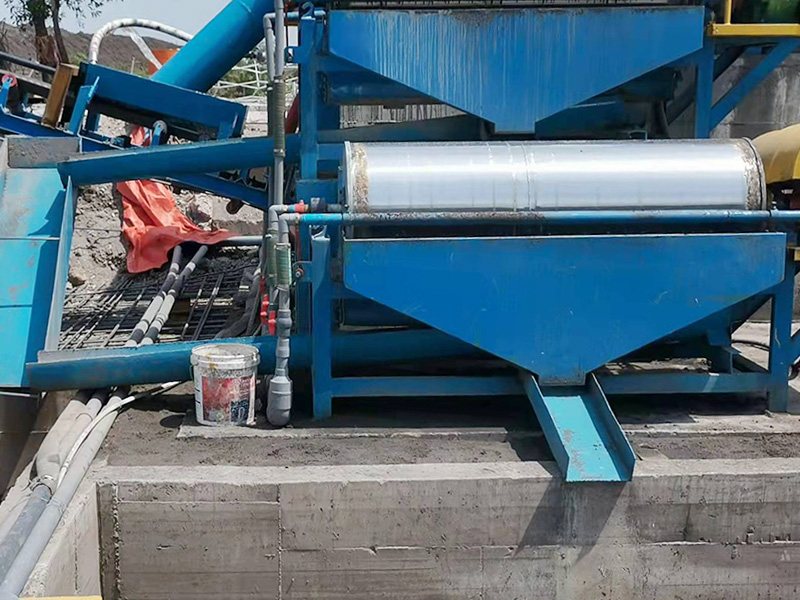

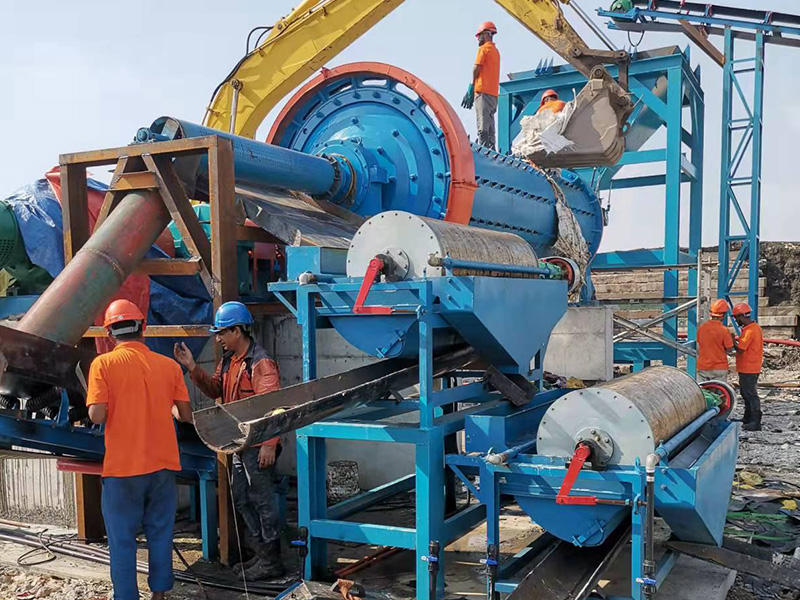

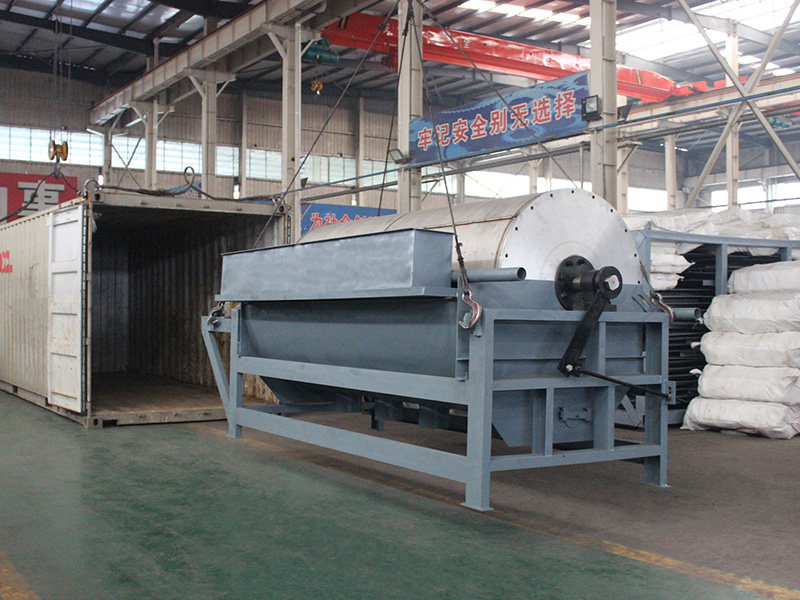

Wet Magnetic separator is one of the most used in the industry, and it is suitable for separating materials which have magnetism differences.
Features
- 1.With permanent magnets, continuous feeding and discharging and short downtime.
- 2.The high-strength and high-reliability mechanical structure ensures the normal operation of the equipment in various harsh environments.
- 3.According to users’ needs, various types of magnetic separation equipment with different surface strengths such as downstream, semi-countercurrent, and countercurrent types can be provided.
Parameter
| Model | Cylinder Size (mm) |
Capacity (m³/h) |
Motor Power (kw) |
Drum Speed (r/min) |
Weight (kg) |
|
|---|---|---|---|---|---|---|
| (t· h) | (m³·h) | |||||
| CTS/CTN/CTB-69 | 600×900 | 8-15 | 24 | 1.1 | 40 | 780 |
| CTS/CTN/CTB-612 | 600×1200 | 10-20 | 32 | 2.2 | 40 | 990 |
| CTS/CTN/CTB-618 | 600×1800 | 15-30 | 48 | 2.2 | 40 | 1330 |
| CTS/CTN/CTB-712 | 750×1200 | 15-30 | 48 | 3 | 35 | 1500 |
| CTS/CTN/CTB-718 | 750×1800 | 20-45 | 72 | 3 | 35 | 2100 |
| CTS/CTN/CTB-918 | 900×1800 | 25-55 | 90 | 4 | 28 | 2500 |
| CTS/CTN/CTB-924 | 900×2400 | 35-70 | 110 | 4 | 28 | 2500 |
| CTS/CTN/CTB-1024 | 1050×2400 | 52-100 | 160 | 5.5 | 22 | 5000 |
| CTS/CTN/CTB-1030 | 1050×3000 | 65-125 | 200 | 7.5 | 19 | 5800 |
| CTS/CTN/CTB-1224 | 1200×2400 | 52-100 | 160 | 5.5 | 19 | 6200 |
| CTS/CTN/CTB-1230 | 1200×3000 | 82-120 | 192 | 7.5 | 19 | 7200 |
| CTS/CTN/CTB-1530 | 1500×3000 | 90-170 | 270 | 11 | 14 | 9700 |
| CTS/CTN/CTB-1540 | 1500×4000 | 115-220 | 350 | 11 | 14 | 11800 |
